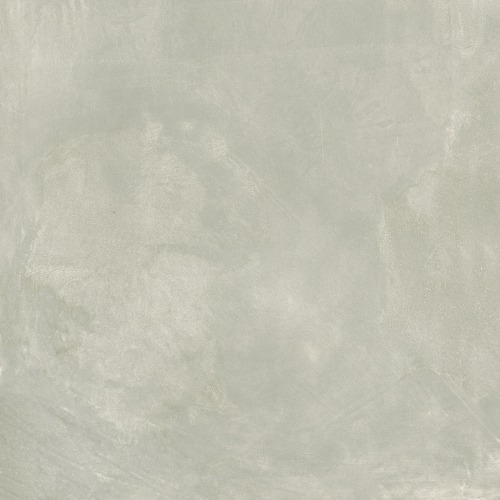

All Big slab > Pozzolano Smoke < Back to all big slab Concreto GCC04 Pozzolano Smoke SURFACES Matt THICKNESS 9 mm AVAILABLE SIZES 120 x 120 cm WORKING SIZE 1.200 x 1.200 mm NUMBER OF FACES 12 Faces GENERAL APPLICATION SHADE VARIATION Moderately noticeable from tile to tile The range of colours and tones within the same shade is moderately noticeable from tile to tile. Clearly distinguishable differencesin design or pattern. AREAL APPLICATION View Product PRODUCT › All design › Tile Design › Big Slab › Concreto › GCC04 - Pozzolano Smoke See The Faces SCAN PRODUCT INFOGCC04 Pozzolano Smoke Pozzolano CremaGCC01 Pozzolano BurlyGCC02 Pozzolano SmokeGCC04 Pozzolano GrisGCC05 Tile Calculator Concreto GCC04 - Pozzolano Smoke Select Size 120 x 120 cm Pick Measurement Unit Area Width x Height x m Add 5% for wastage carton View Product Specification GENERAL TECHNICAL SPECIFICATION DESCRIPTION STANDARD TEST MEASUREMENT UNIT ISO STANDARD REQUIREMENTISO 13006:2018 NIRO GRANITE Length & Width ISO 10545 -2 mm NR: ±0.6%, ±2.0mmR: ±0.3%, ±1.0mm ±0.30% / Max ± 1.0mm Thickness ISO 10545 -2 mm ±5.0%, Max ±0.5mm ±5.00% / Max ± 0.5mm Sides Straightness ISO 10545 -2 mm NR: ±0.5%, ±1.5mmR: ±0.3 %, ±0.8mm ±0.25% / Max ± 0.6mm Rectangularity ISO 10545 -2 mm NR: ±0.5%, ±2.0mmR: ±0.3 %, ±1.5mm ±0.25% / Max ± 1.0mm Flatness : a. Centre Curvature ISO 10545 -2 mm NR: ±0.5%, ±2.0mmR: ±0.4 %, ±1.8mm ±0.20% / Max ± 1.8mm300×300: ±0.3% / Max ±1.8mm b. Edge Curvature ISO 10545 -2 mm NR: ±0.5%, ±2.0mmR: ±0.4 %, ±1.8mm ±0.20% / Max ± 1.8mm c. Warpage ISO 10545 -2 mm NR: ±0.5%, ±2.0mmR: ±0.4 %, ±1.8mm ±0.20% / Max ± 1.8mm Surface Quality ISO 10545 -2 One Major Area of Tiles Min 95% Comply Water Absorption ISO 10545 -3 Mass Ev 0.5%Ind Max 0.6% 0.20 Breaking Strength ISO 10545 -4 N Not less than 1300N 1300 N Modulus of Rupture ISO 10545 -4 N/mm2 Min 35 N/mm2Ind min 32 N/mm2 35 N/mm2Individual 32 N/mm2 Abrasion Resistance a. Deep Abrasion for unglazed tiles ISO 10545 -6 mm3 Max 175 mm3 160 mm3 b. Surfaces Abrasion for glazed tiles ISO 10545 -7 Visual Check Report abrasion class andcycles passed PEI 3(Dependent on product type) Crazing Test (glazed tiles) ISO 10545 -11 Visual Check Required No Sign of Crazing Frost Resistance ISO 10545 -12 Visual Check Required No Visible Crack Chemical Resistance a. Low concentrations ISO 10545 -13 Visual Check Manuf. To State Class A Class B (For Polished Tile) b. Household chemicals and swimming pool salts ISO 10545 -13 Visual Check Minimum B Class A Class B (For Polished Tile) Stain Resistance a. For unglazed tiles ISO 10545 -14 Visual Check Test Method Available Class 3 b. For glazed tiles ISO 10545 -14 Visual Check Min Class 3 Class 3 Slip Resistance(Excluding Polished, Lappato and Matt Satin finishing) AS/NZS 4586 App. A P0 to P5 Manuf. to State Wet Pendulum P2( Dependent on product type )* GENERAL PACKING PRODUCT SIZE DESCRIPTION MEASUREMENT UNIT NIRO GRANITE 80×190 Number of tiles per cartonM2 per cartonNumber of carton per pallet PcsM2Ctn 23.2428 120×120 Number of tiles per cartonM2 per cartonNumber of carton per pallet PcsM2Ctn 22.8838 120×240 Number of tiles per cartonM2 per cartonNumber of carton per pallet PcsM2Ctn 12.8850
